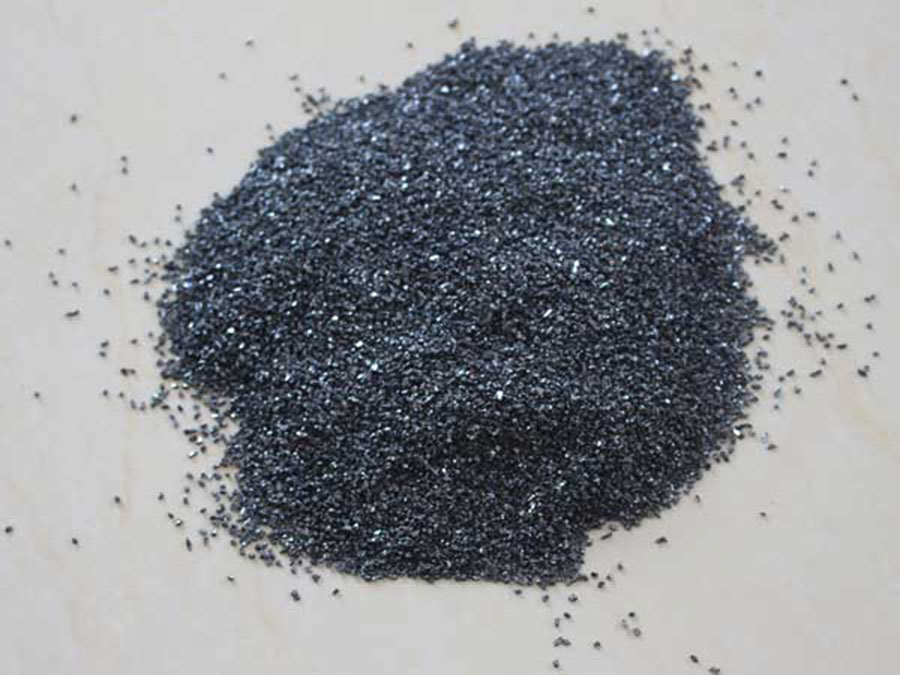

Black silicon carbide is made of quartz sand and petroleum coke by high temperature smelting in resistance furnace. Black crystal, micro-hardness HV3100-3280, brittle and sharp, and has a certain electrical and thermal conductivity. The grinding tools are suitable for grinding non-metallic materials such as cast iron, non-ferrous metal, rubber, leather, plastic, wood and ore. In addition, it can also make high - grade refractory, etc.
Introduction:
Black silicon carbide is made of quartz sand and petroleum coke by high temperature smelting in resistance furnace. Black crystal, micro-hardness HV3100-3280, brittle and sharp, and has a certain electrical and thermal conductivity. The grinding tools are suitable for grinding non-metallic materials such as cast iron, non-ferrous metal, rubber, leather, plastic, wood and ore. In addition, it can also make high - grade refractory, etc.
Silicon Carbide Deoxidant
|
Grade |
Chemical composition (%) |
||||||
|
SiC% |
Free C% |
SiO2% |
Fe2O3% |
MgO% |
AL2O3% |
H2O% |
|
|
SiC75 |
75±4 |
2.5±1 |
17±2 |
3 |
0.16 |
1.5±1 |
＜0.5 |
|
SiC65 |
65±4 |
4.5±1 |
23±2 |
4 |
0.12 |
2±0.5 |
＜0.5 |
|
SiC55 |
55±4 |
4.8±1.5 |
28±2 |
5±2 |
0.10 |
3±1 |
＜0.5 |
|
SiC45 |
45±4 |
5±2 |
31±2 |
7±2 |
0.10 |
5±2 |
＜0.5 |
Silicon Carbide Grit
|
Item/Particle size |
Coarse particle Max |
Normal particle Min |
>Mix particle> >Min |
Fine particle Max |
|
12# |
20 |
51 |
70 |
2 |
|
36# |
25 |
51 |
65 |
|
|
40#-60# |
30 |
46 |
65 |
2 |
|
70#-80# |
25 |
46 |
65 |
2 |
|
90#-120# |
20 |
46 |
65 |
|
|
150#-220# |
15 |
45 |
65 |
|
|
240# |
5 |
8 |
38 |
|
Silicon CarbideCalcinedBsiliconlack Silicon CarbideBlack Silicon Carbide
|
Grade |
Composition |
Specification |
Fe2O3 |
Magnetic Material |
Free C |
Free Si |
Note |
|
Special grade No. 1 |
98 |
0 ~ 1 |
0.3 |
0.1 |
0.3 |
0.8 |
0-1、1-3、3-5 |
|
Grade No. 1
|
97 |
0 ~ 1 |
0.4 |
0.15 |
0.4 |
1.0 |
|
|
Special grade No. 2 |
90 |
0 ~ 1 |
2.0 |
|
3.0 |
|
|
|
Grade No. 2 |
88 |
0 ~ 1 |
2.5 |
|
3.0 |
|
0-1、1-3、3-5 |
|
Grade No. 3 |
70 |
0 ~ 1 |
|
|
|
|
0-1、1-3、3-5 |
Note: The above specifications are for your reference, we can produce according to your requirements.
